蘋果開發

Nepenthes對於蘋果開發的支持包括三種系統：iOS, macOS和tvOS，分別有不同的Nepenthes.framework對應，請選擇合適的版本下載使用。在蘋果開發的培訓課程中，將使用macOS進行。本部分的開發培訓，需要開發者精通Objective-C語言和Cocoa開發，有開發iOS, macOS或tvOS的經驗，並且熟悉開發工具Xcode的使用。

工程Framework開發

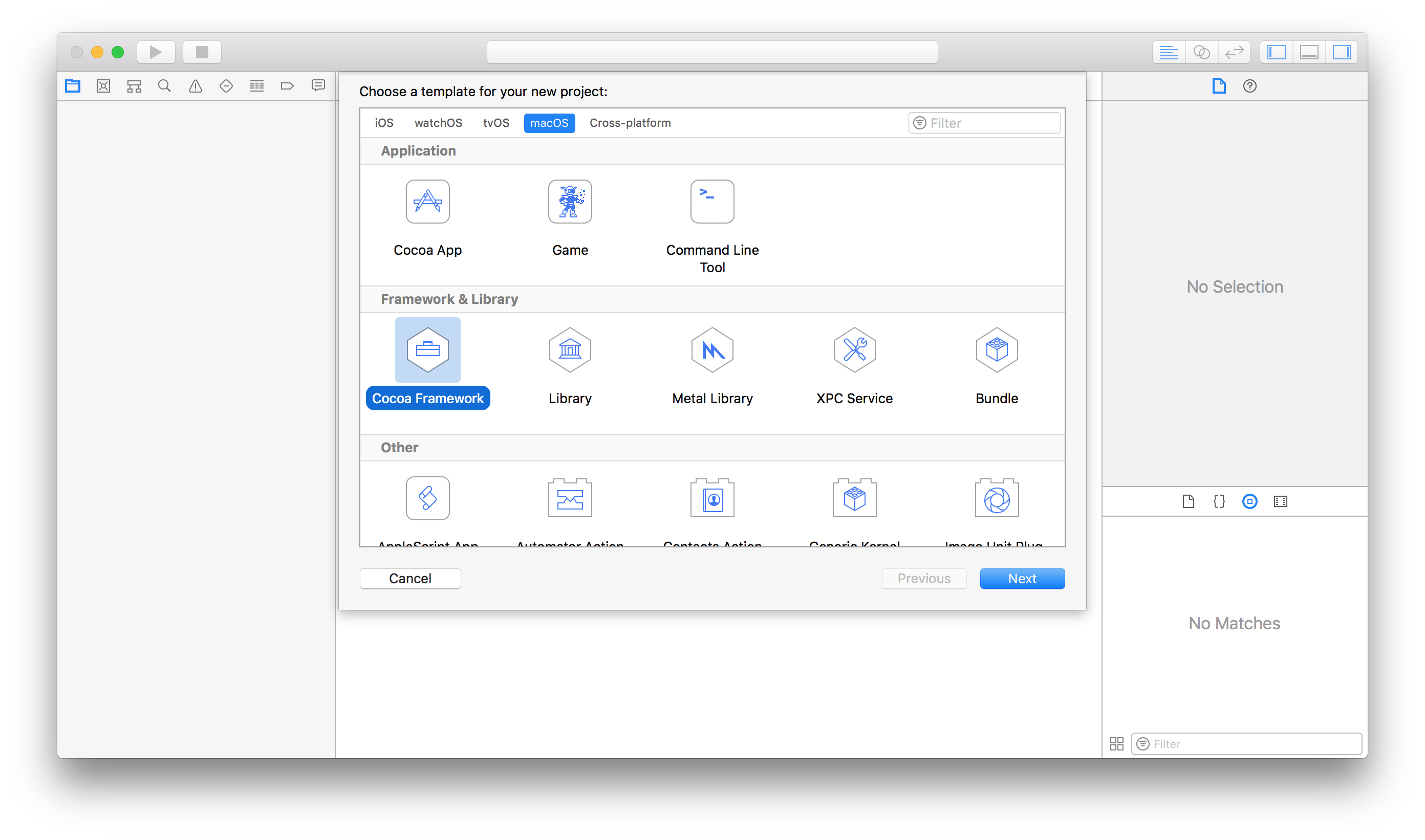

1. 打開Xcode創建工程，選擇macOS系統下的Cocoa Framework，如下圖所示：

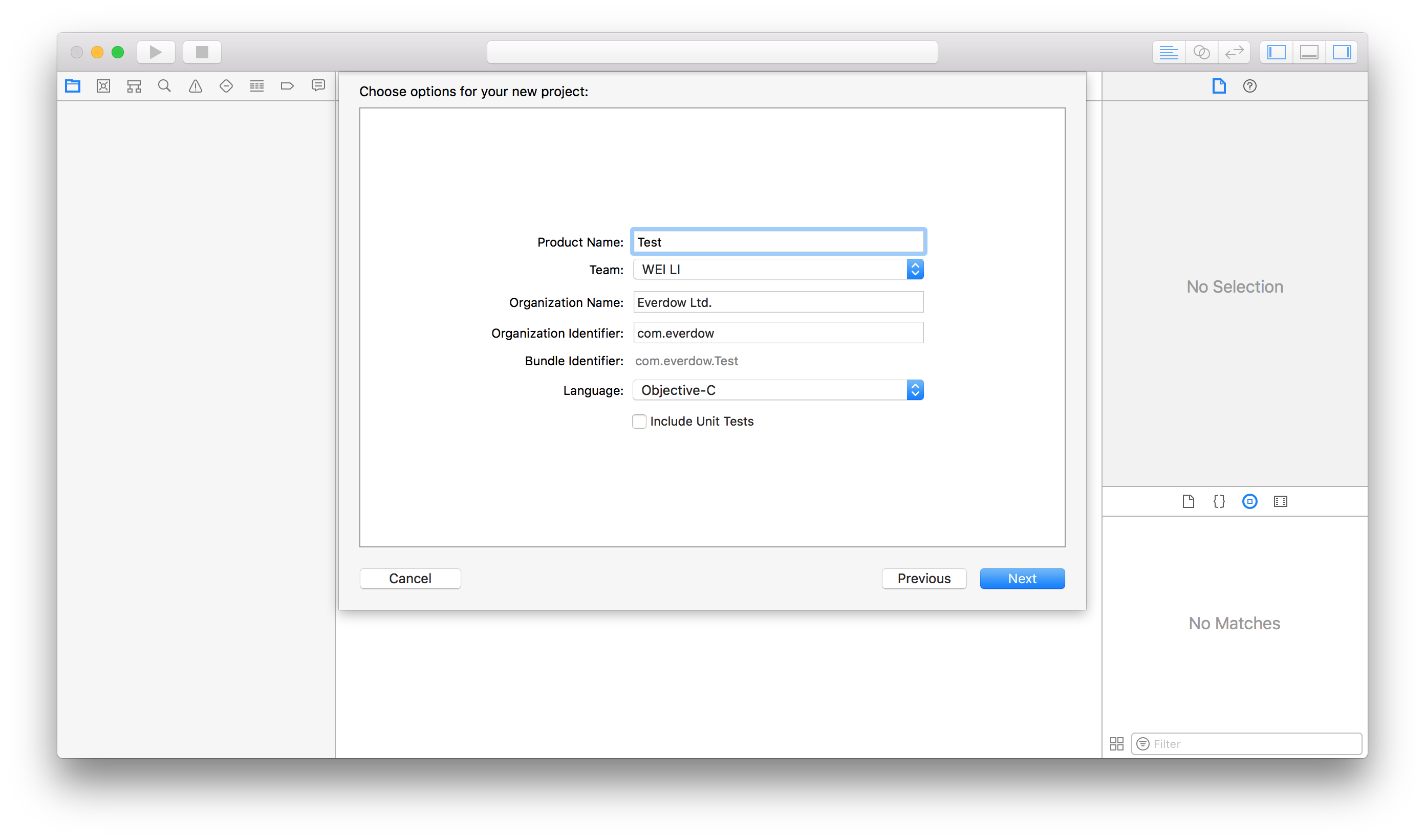

2. 點擊Next後，輸入工程名稱Test，如下圖所示：

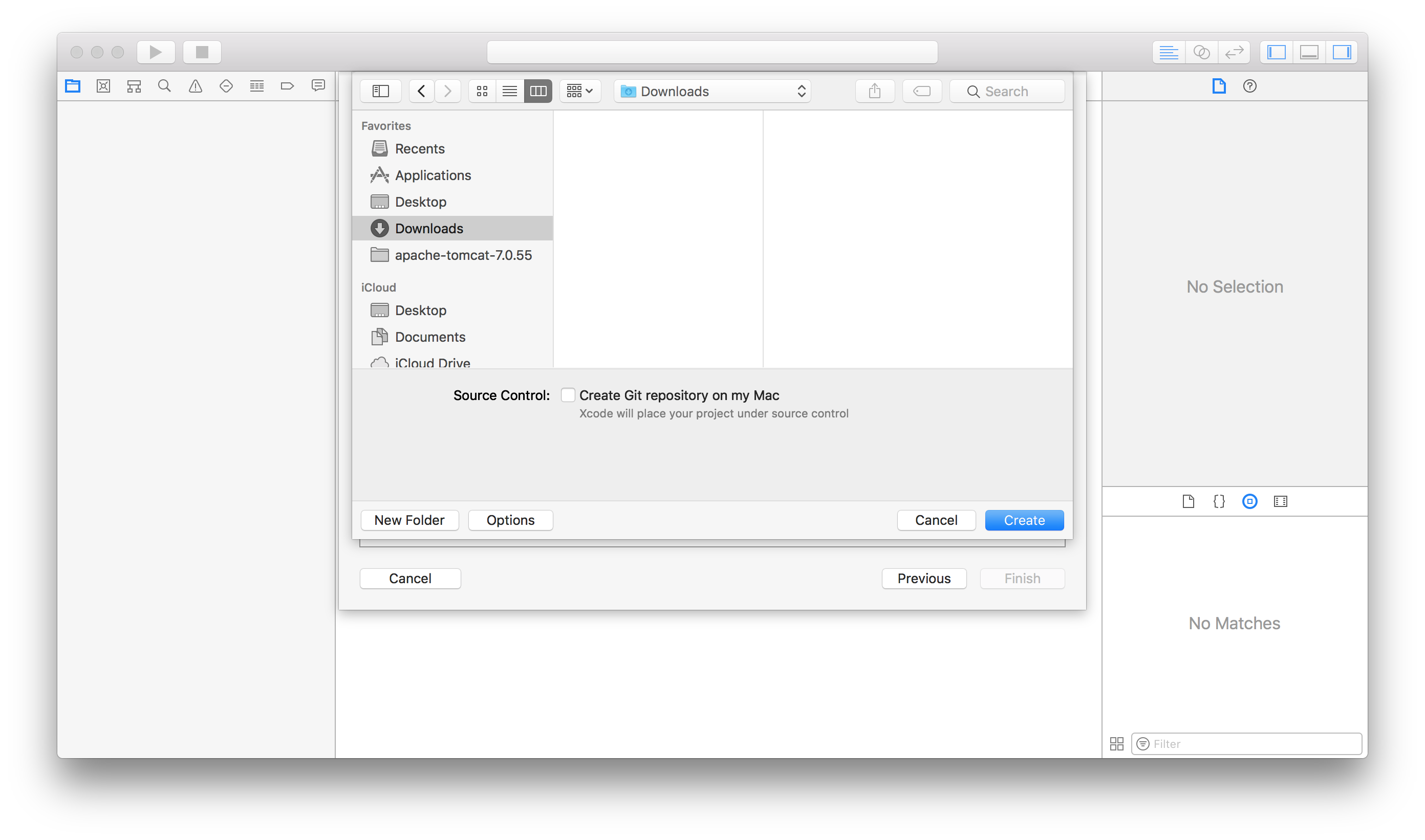

3. 選擇項目存儲位置

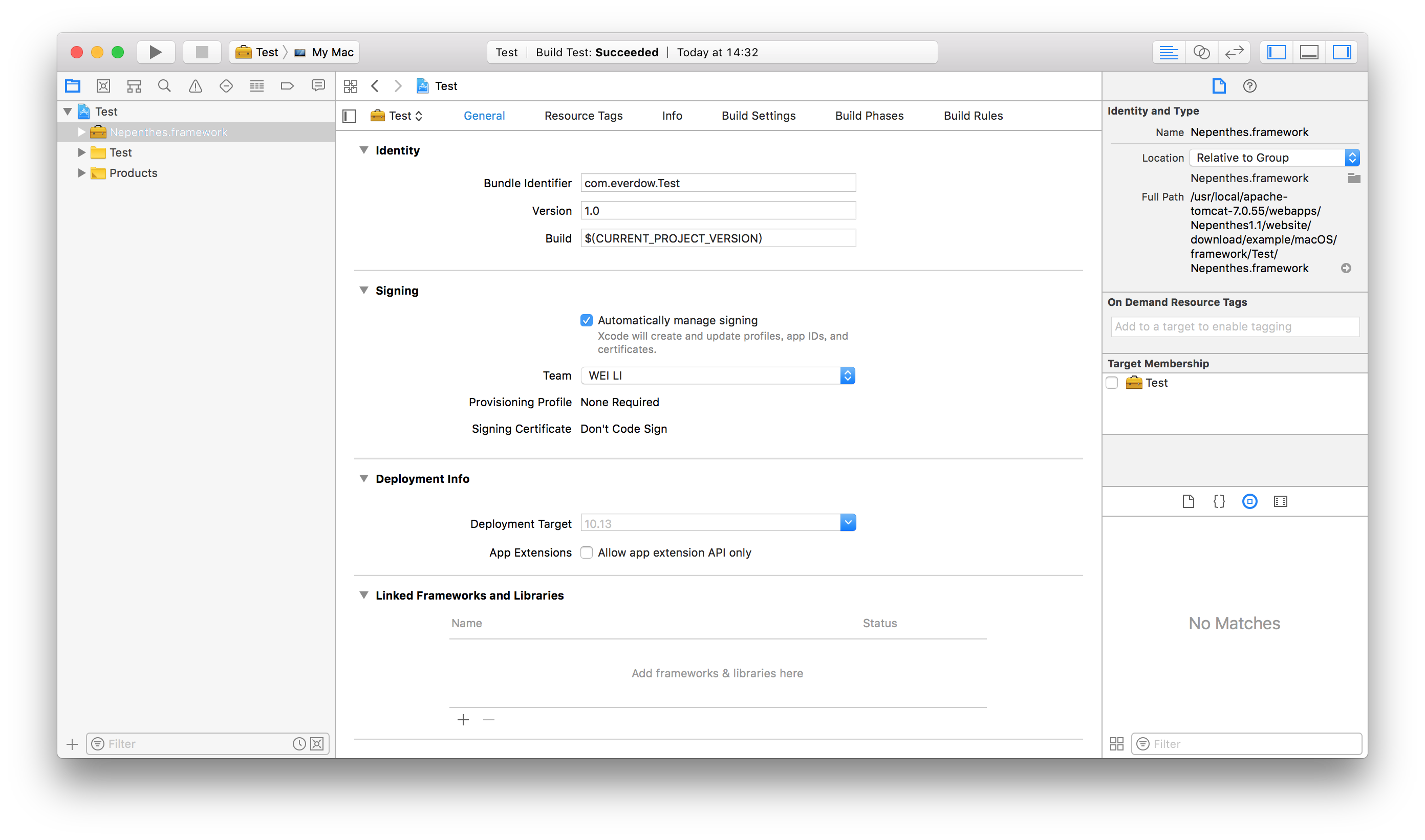

4. 在下載頁面下載macOS版本的Nepenthes.framework，解壓縮後，拖入工程節點Test之下

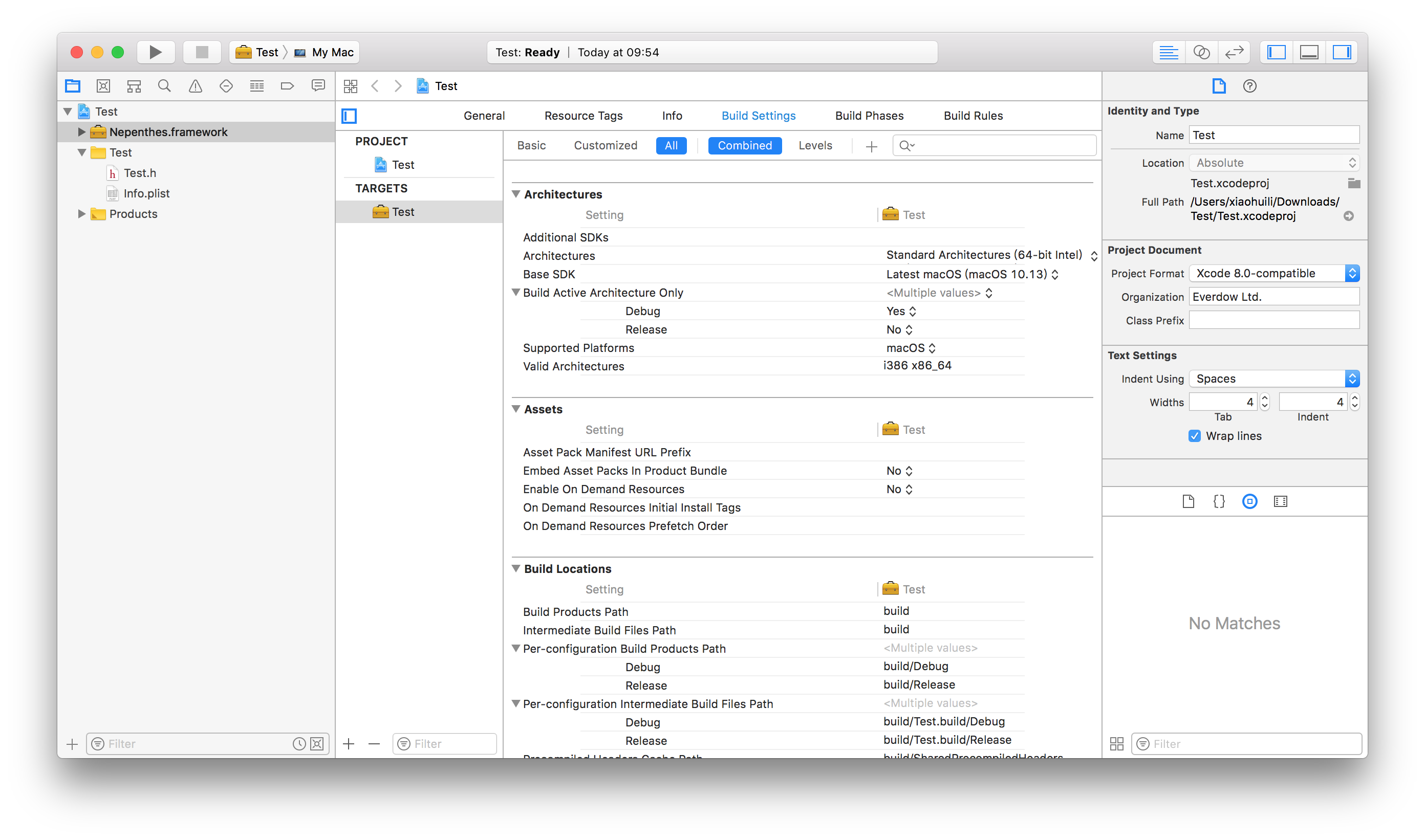

5. 確保Targets下的Test在選中狀態，點擊Build Settings

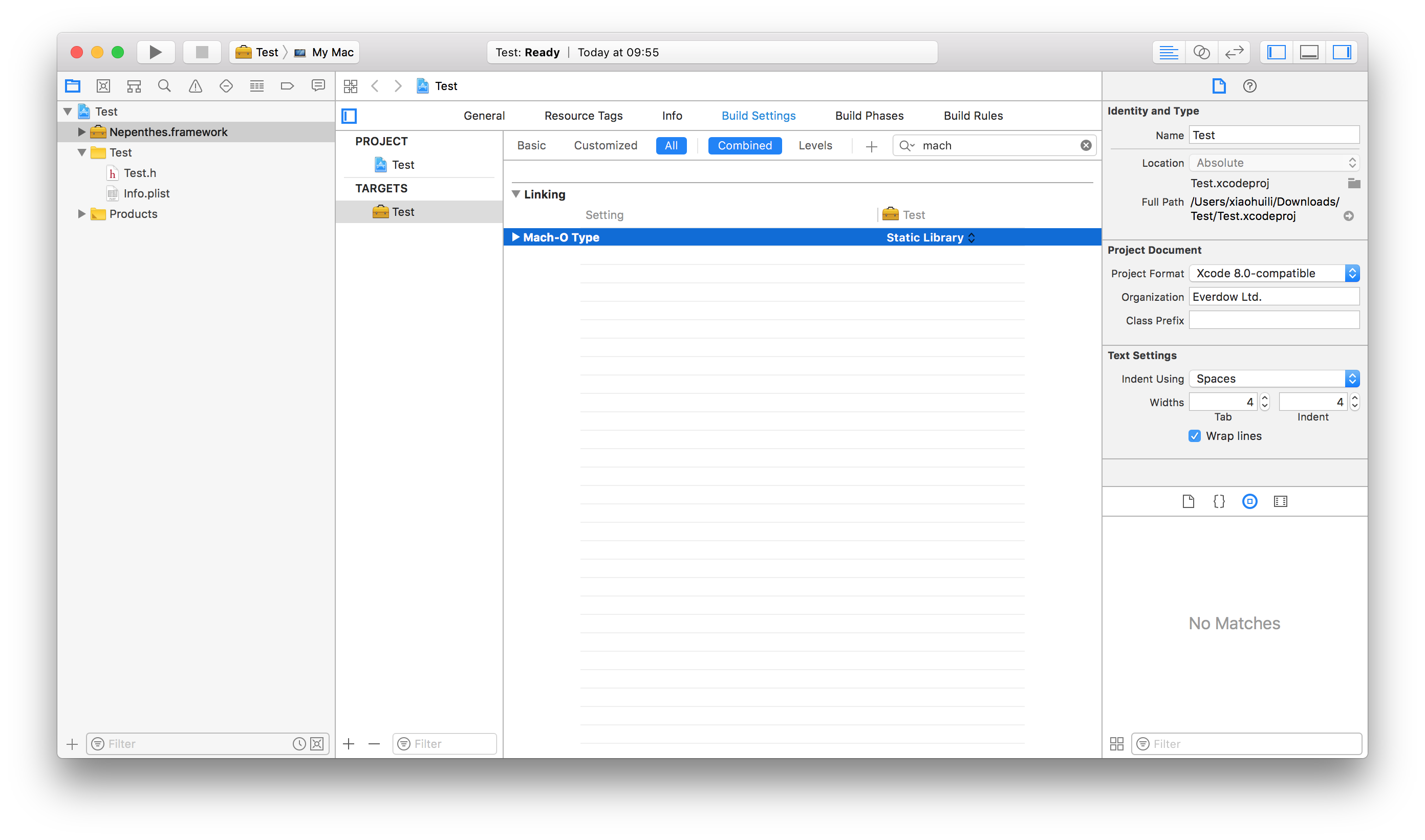

6. 在Build Settings的搜索框輸入mach，將Mach-O Type值選擇Static Library

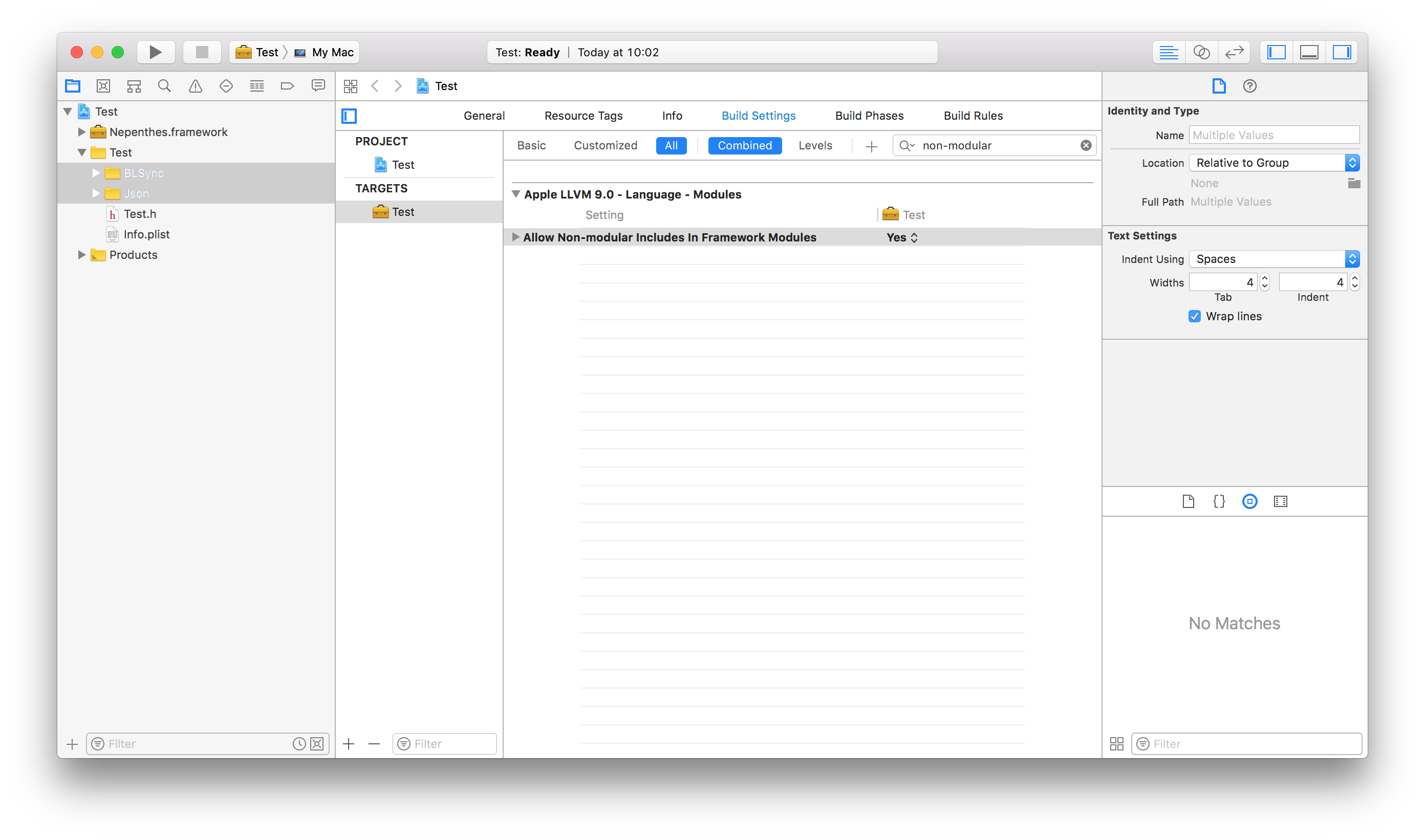

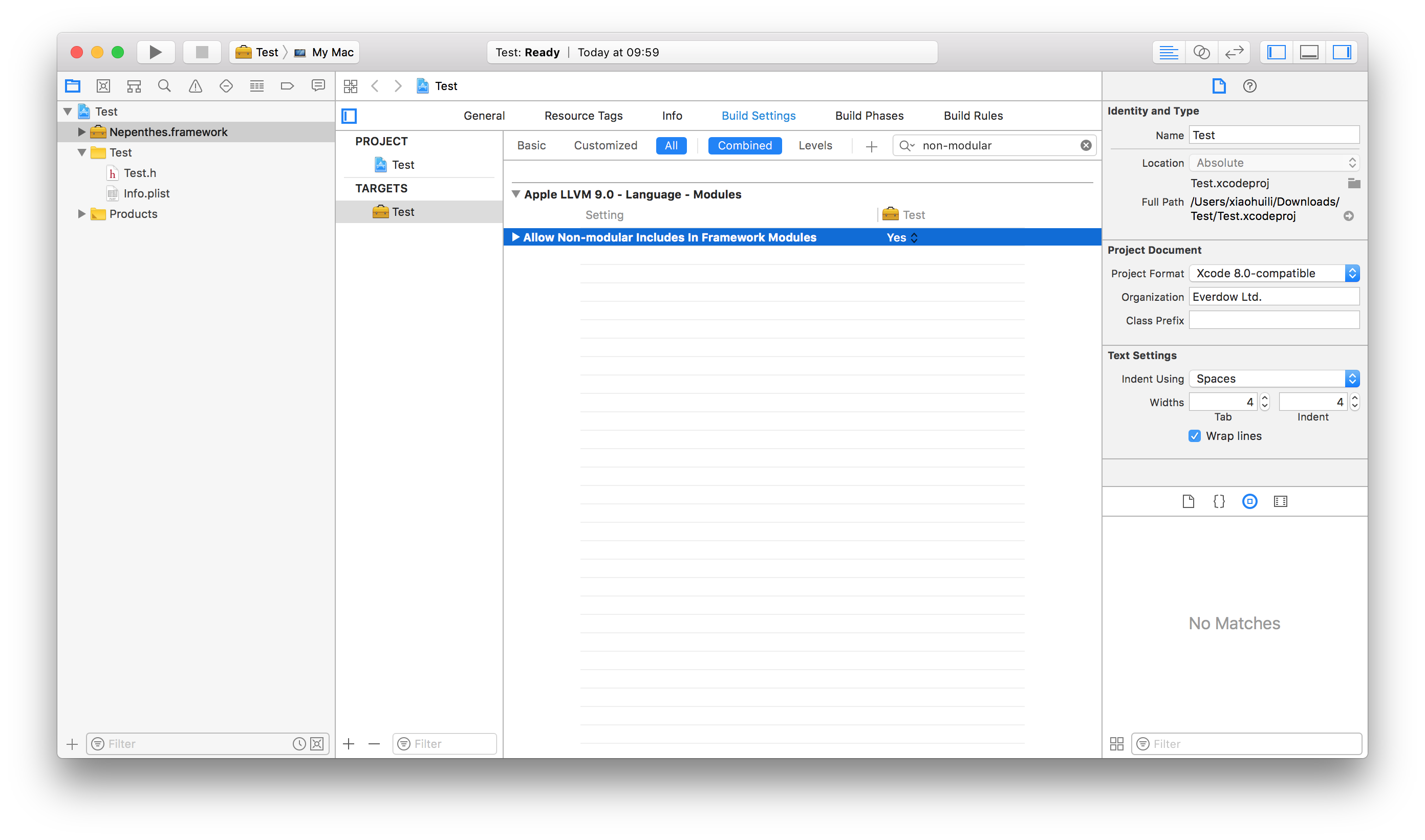

7. 繼續在Build Setting的搜索框輸入non-modular，將Allow Non-modular Includes In Framework Modules的值選擇為YES

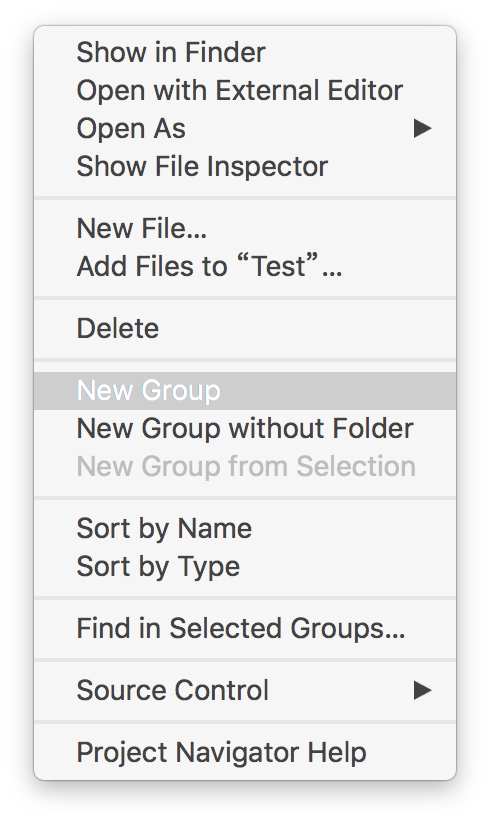

8. 選中左側的Test工程節點，右鍵從快捷菜單中選擇New Group

9. 創建兩個Group：Json和BLSync

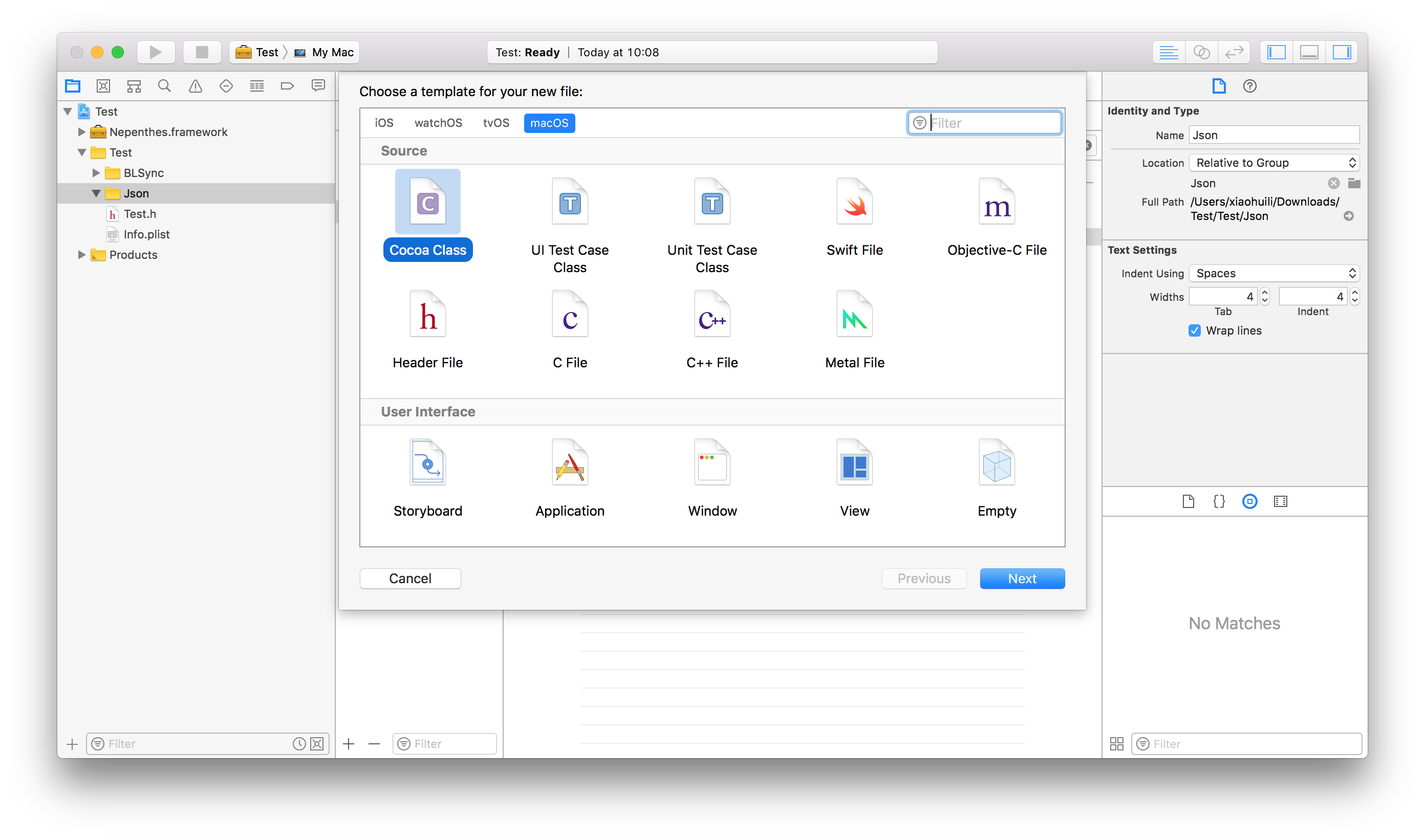

10. 在Json Group節點上右鍵，從快捷菜單中選擇New File...，選擇macOS系統下的Cocoa Class

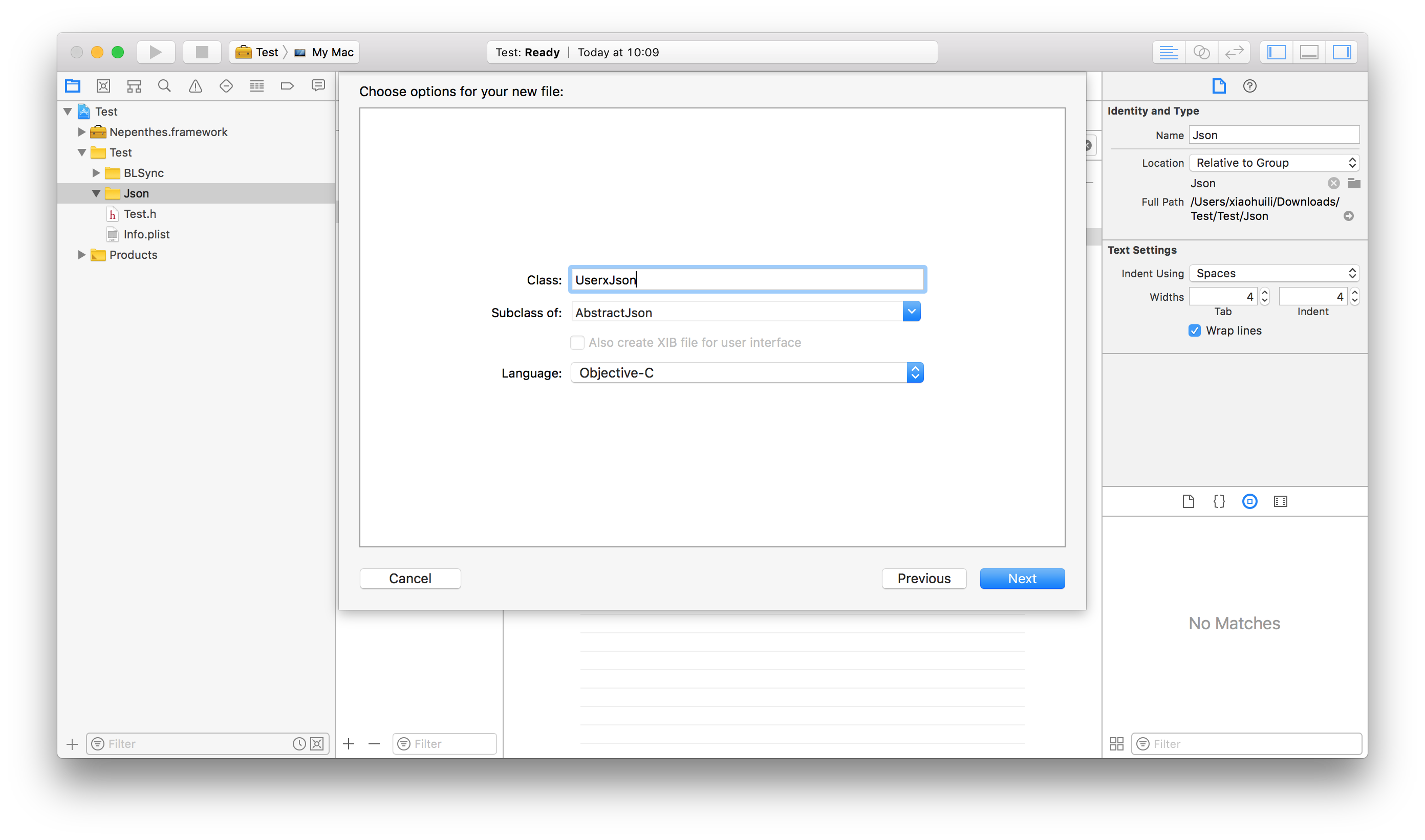

11. 在Class中輸入UserxJson，Subclass of輸入AbstractJson，Language選擇Objective-C

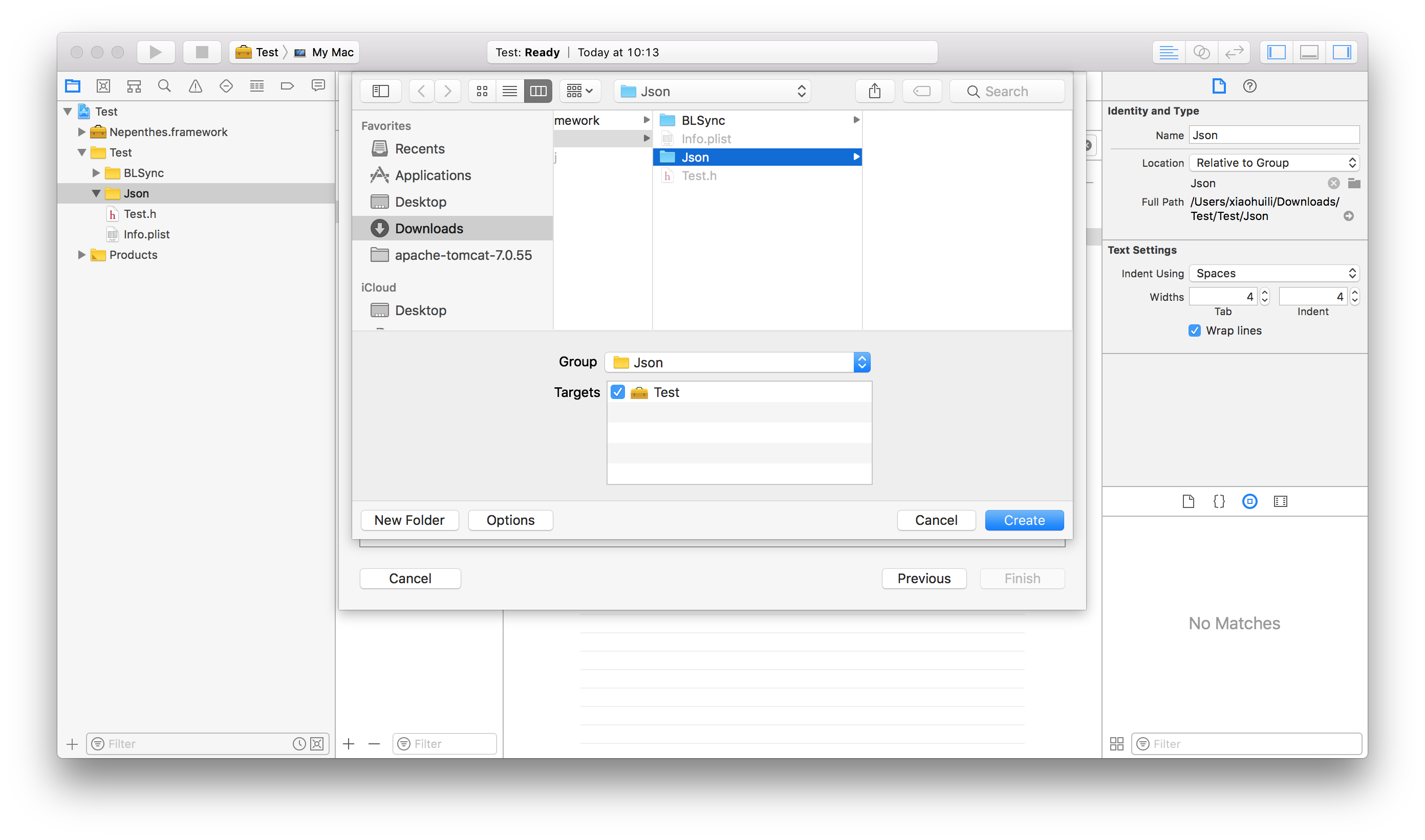

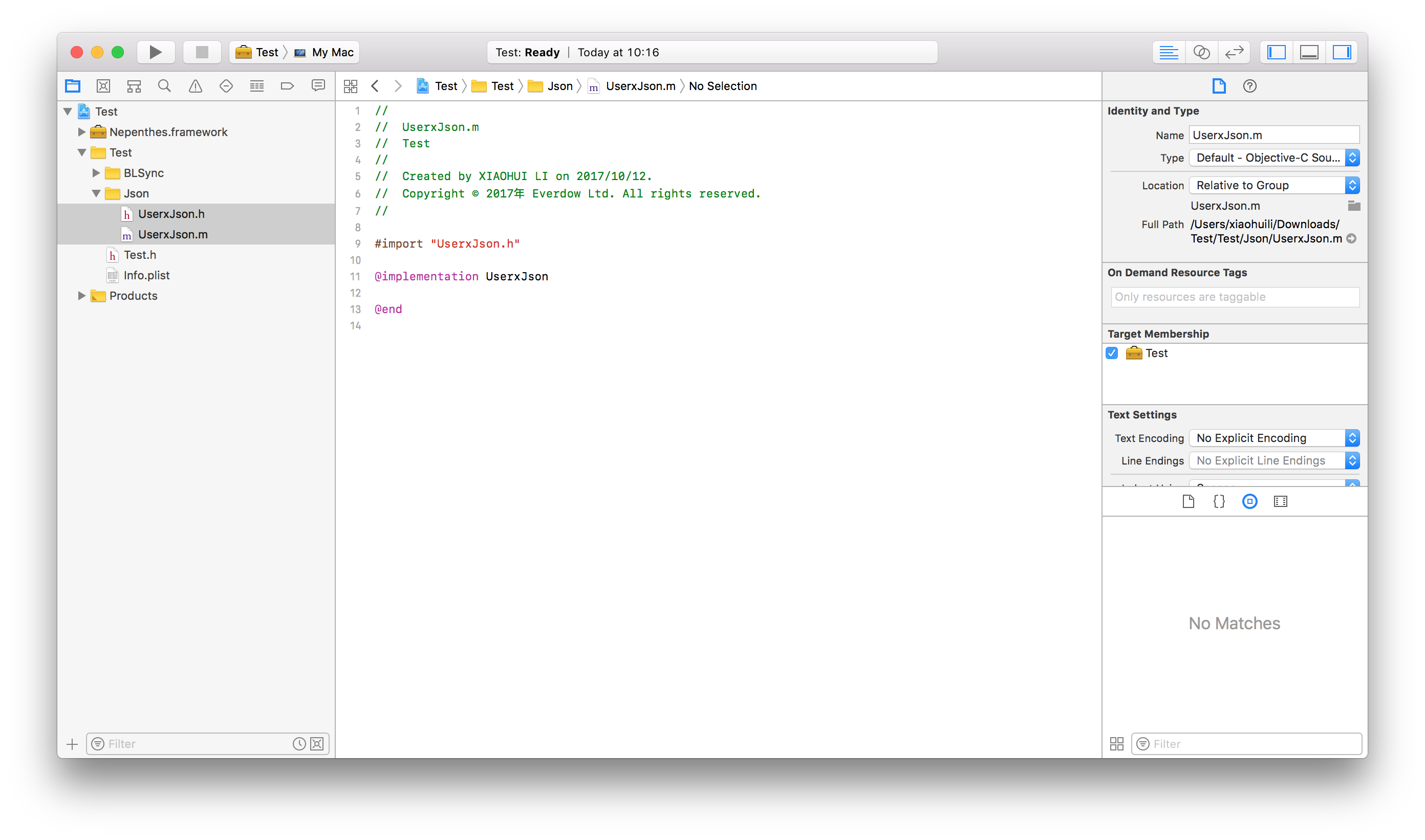

12. 選擇Json，點擊Create，生成UserxJson.h和UserxJson.m


13. 編輯UserxJson.h，使其源代碼如下：

    //
    //  UserxJson.h
    //
    //  Created by Everdow at 2017-10-12 10:5:24
    //  Copyright © 2017 Everdow Ltd. All rights reserved.
    //

    #import

    @interface UserxJson : AbstractJson
    {
        NSString *ID;  //Auto Increment Unique ID
        NSString *FirstName;  //名(MaxLen=20)
        NSString *LastName;  //姓(MaxLen=20)
        NSString *Gender;  //性別
        NSString *Birthdate;  //出生日期
        NSString *Salary;  //薪水(MaxLen=10)
        NSString *RegisteredTime;  //註冊時間
        NSString *Memo;  //備注
    }
    @property(nonatomic,retain) NSString *ID;
    @property(nonatomic,retain) NSString *FirstName;
    @property(nonatomic,retain) NSString *LastName;
    @property(nonatomic,retain) NSString *Gender;
    @property(nonatomic,retain) NSString *Birthdate;
    @property(nonatomic,retain) NSString *Salary;
    @property(nonatomic,retain) NSString *RegisteredTime;
    @property(nonatomic,retain) NSString *Memo;

    @end

14. 編輯UserxJson.m，使其源代碼如下：

    //
    //  UserxJson.m
    //
    //  Created by Everdow at 2017-10-12 10:5:24
    //  Copyright © 2017 Everdow Ltd. All rights reserved.
    //

    #import "UserxJson.h"

    @implementation UserxJson
    @synthesize ID;
    @synthesize FirstName;
    @synthesize LastName;
    @synthesize Gender;
    @synthesize Birthdate;
    @synthesize Salary;
    @synthesize RegisteredTime;
    @synthesize Memo;

    @end

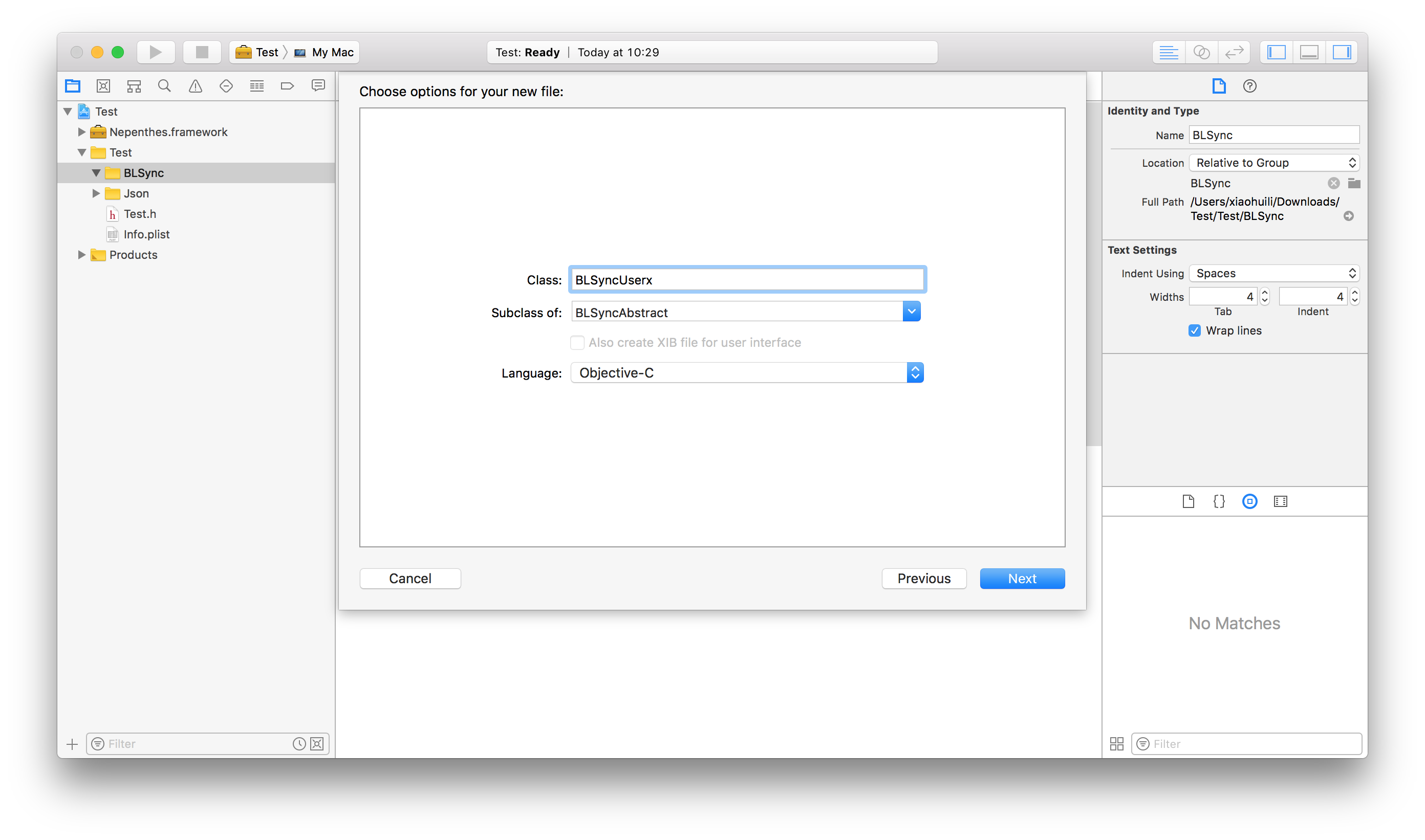

15. 選中BLSync節點，創建BLSyncUserx.h和BLSyncUserx.m

16. 編輯BLSyncUserx.h，使其源代碼如下：

    //
    //  BLSyncUserx.h
    //
    //  Created by Everdow at 2017-10-12 10:5:24
    //  Copyright © 2017 Everdow Ltd. All rights reserved.
    //

    #import
    #import "UserxJson.h"

    @interface BLSyncUserx : BLSyncAbstract

    //insert UserxJson to server database
    -(BOOL)insert:(UserxJson *)json;

    //delete records that in condition with whereClause,whereClause should SQL WHERE latter part,if there will the symbol of ',please use ~ to replace,like: @"Name LIKE ~'John'~"
    -(BOOL)delete:(NSString *)whereClause;

    //delete record by its ID,it's the extension of -(BOOL)delete:(NSString *)whereClause
    -(BOOL)deleteByID:(NSString *)ID;

    //update UserxJson to server database
    -(BOOL)update:(UserxJson *)json;

    // get count from the records that in condition with whereClause
    -(NSInteger)getCount:(NSString *)whereClause;

    //query database without no paging
    -(NSArray *)select:(NSString *)whereClause;

    //query database with paging,index is the cursor start position,step is the paging number
    -(NSArray *)select:(NSString *)whereClause index:(NSString *)index step:(NSString *)step;

    //get UserxJson by it's ID
    -(UserxJson *)getJson:(NSString *)ID;

    @end

17. 編輯BLSyncUser.m，使其源代碼如下：

    //
    //  BLSyncUserx.m
    //
    //  Created by Everdow at 2017-10-12 10:5:24
    //  Copyright © 2017 Everdow Ltd. All rights reserved.
    //

    #import "BLSyncUserx.h"

    @implementation BLSyncUserx

    -(BOOL)insert:(UserxJson *)json
    {
        return [super insert:json];
    }

    -(BOOL)delete:(NSString *)whereClause
    {
        return [super delete:whereClause];
    }

    -(BOOL)deleteByID:(NSString *)ID
    {
        return [self delete:[@"ID=" stringByAppendingString:ID]];
    }

    -(BOOL)update:(UserxJson *)json
    {
        return [super update:json];
    }

    -(NSInteger)getCount:(NSString *)whereClause
    {
        return [super getCount:whereClause];
    }

    -(NSArray *)select:(NSString *)whereClause
    {
        return [super select:whereClause];
    }

    -(NSArray *)select:(NSString *)whereClause index:(NSString *)index step:(NSString *)step
    {
        return  [super select:whereClause index:index step:step];
    }

    -(UserxJson *)getJson:(NSString *)ID
    {
        UserxJson *json = nil;

        NSArray *result = [self select:[@"ID=" stringByAppendingString:ID]];
        if(result)
        {
            json = [UserxJson getJson:[result objectAtIndex:0]];
        }

        return json;
    }

    @end

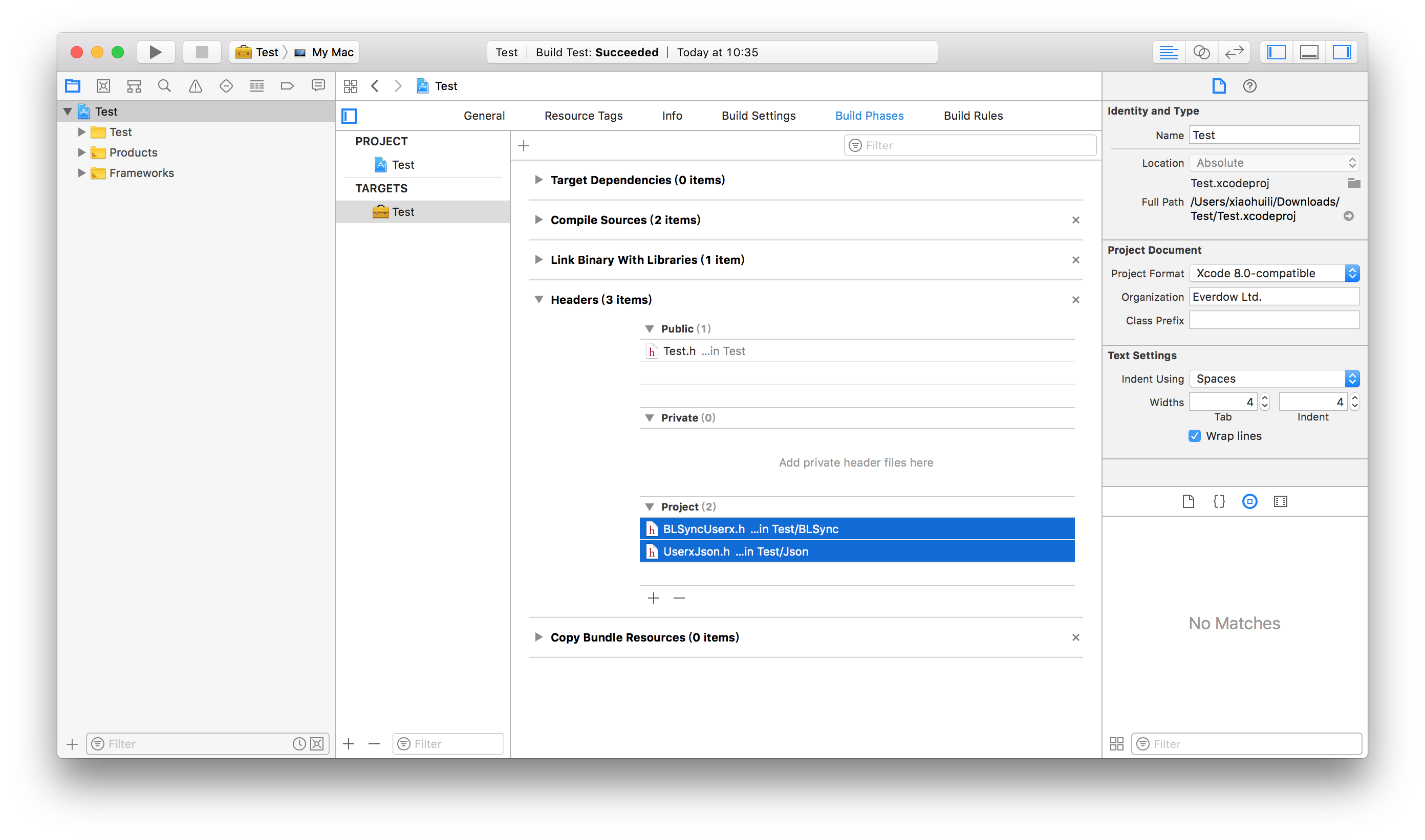

18. 選擇Build Phases選項卡，展開Headers，選中Project節點下的BLSyncUserx.h和UserxJson.h

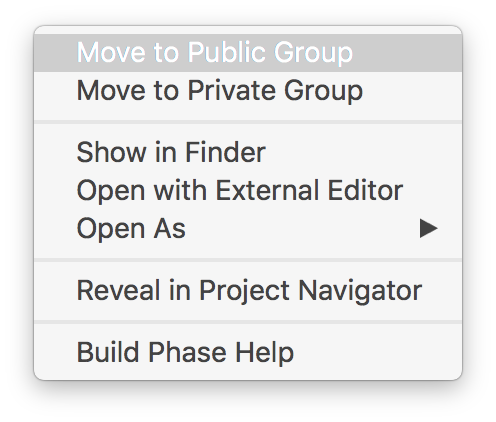

19. 右鍵從快捷菜單中選擇Move to Public Group

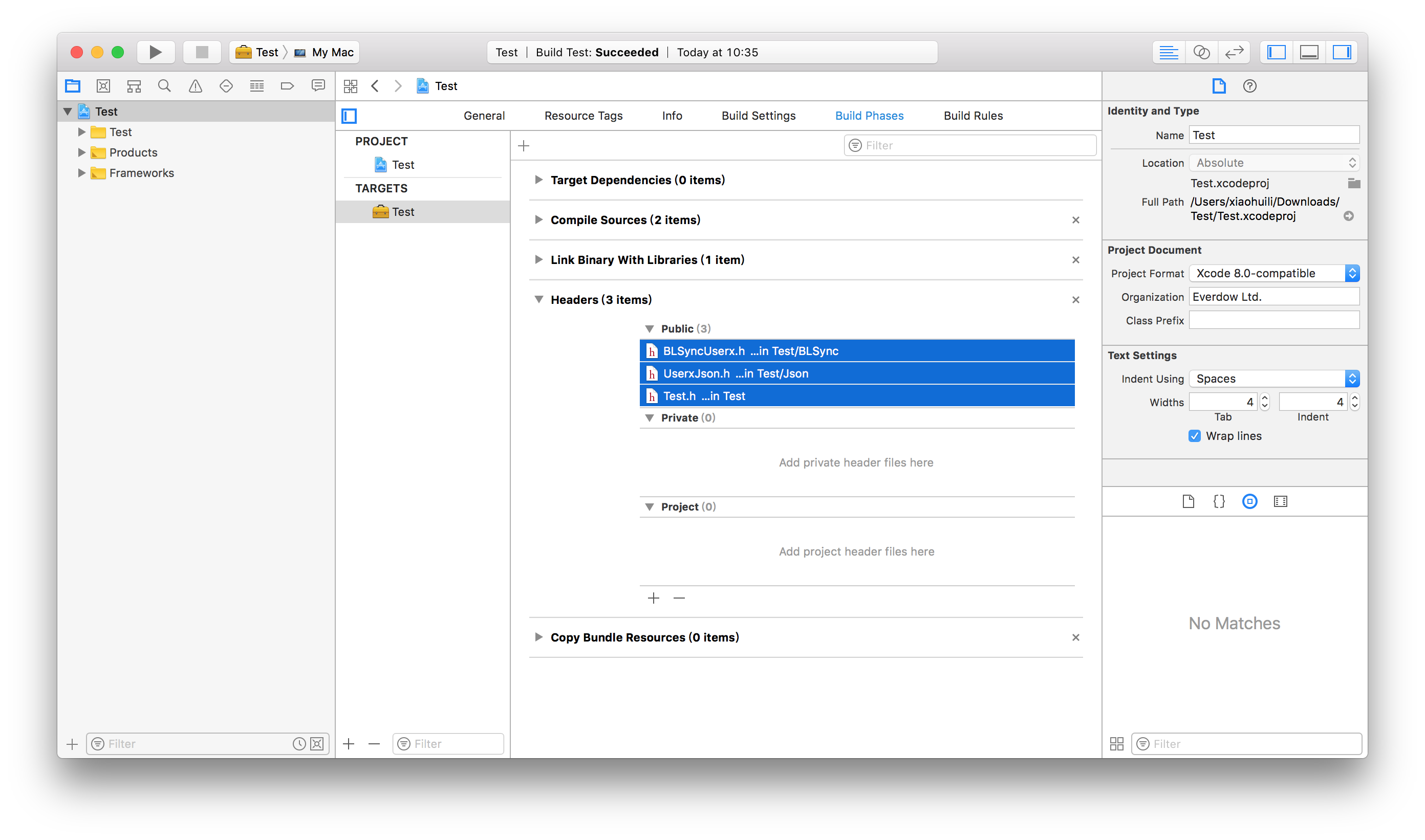

20. 檢視確保Test.h, BLSyncUserx.h和UserxJson.h在Public組中

21. 展開左側的Test節點，編輯Test.h，使其源代碼如下：

    //
    //  Test.h
    //  Test
    //
    //  Created by XIAOHUI LI on 2017/10/12.
    //  Copyright © 2017年 Everdow Ltd. All rights reserved.
    //

    #import

    //! Project version number for Test.
    FOUNDATION_EXPORT double TestVersionNumber;

    //! Project version string for Test.
    FOUNDATION_EXPORT const unsigned char TestVersionString[];

    // In this header, you should import all the public headers of your framework using statements like #import

    #import
    #import

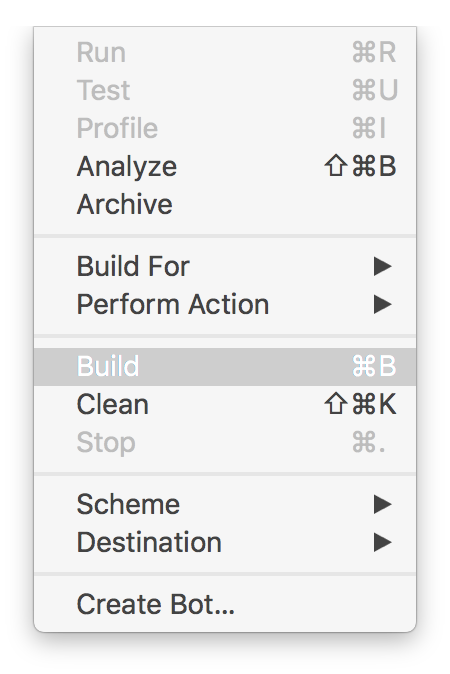

22. 從Xcode的Product菜單中選擇Build，以執行編譯。

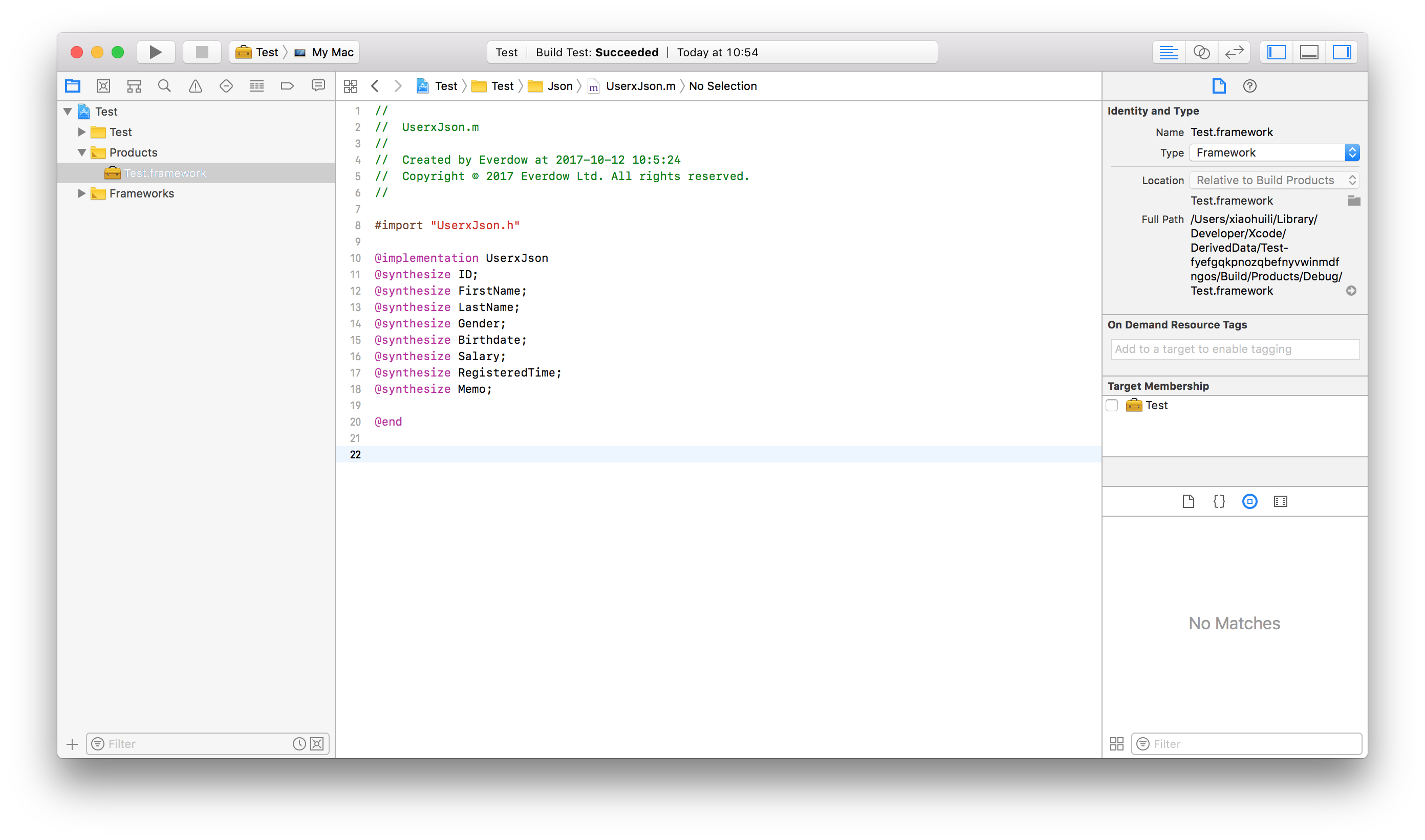

23. 這是會在節點Products下生成Test.framework

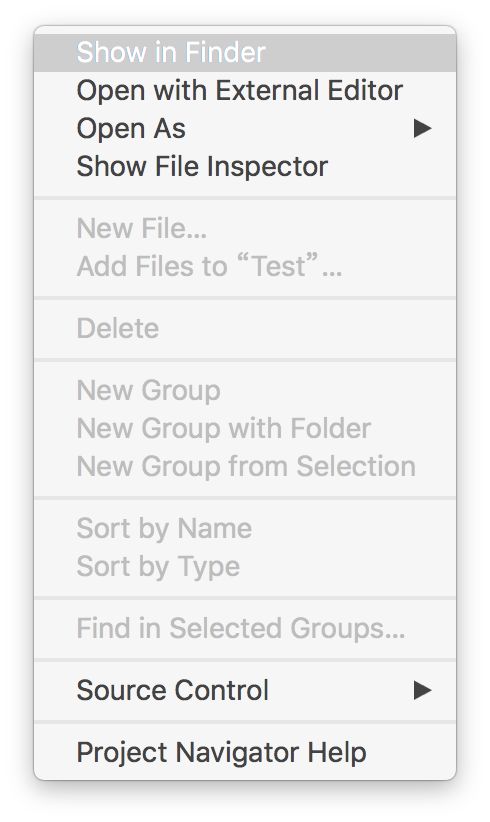

24. 選中Test.framework右鍵從快捷菜單中選擇Show in Finder，把此文件複製出來以備在Xcode的應用工程中使用。


工程開發：調用上面Build生成的Test.framework

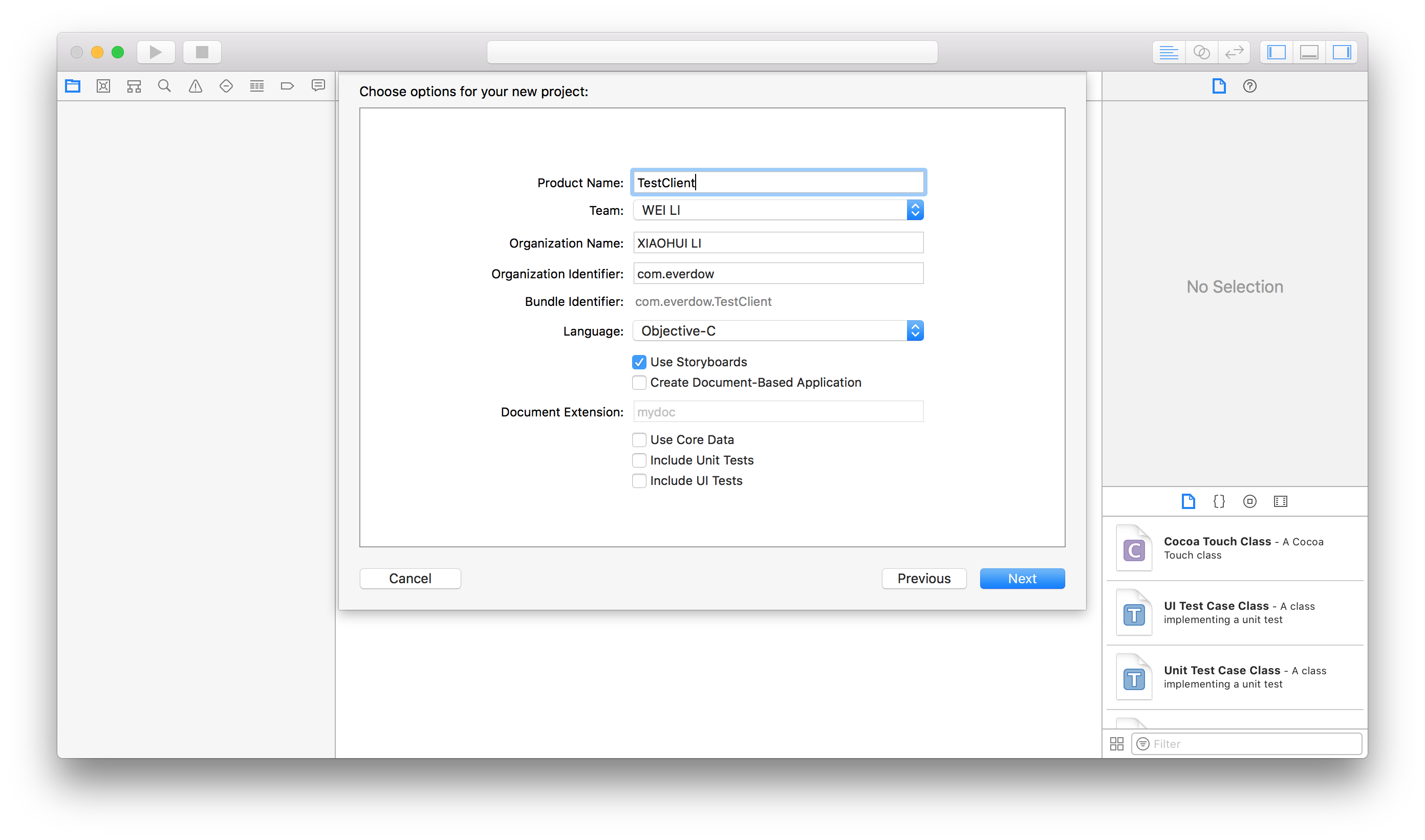

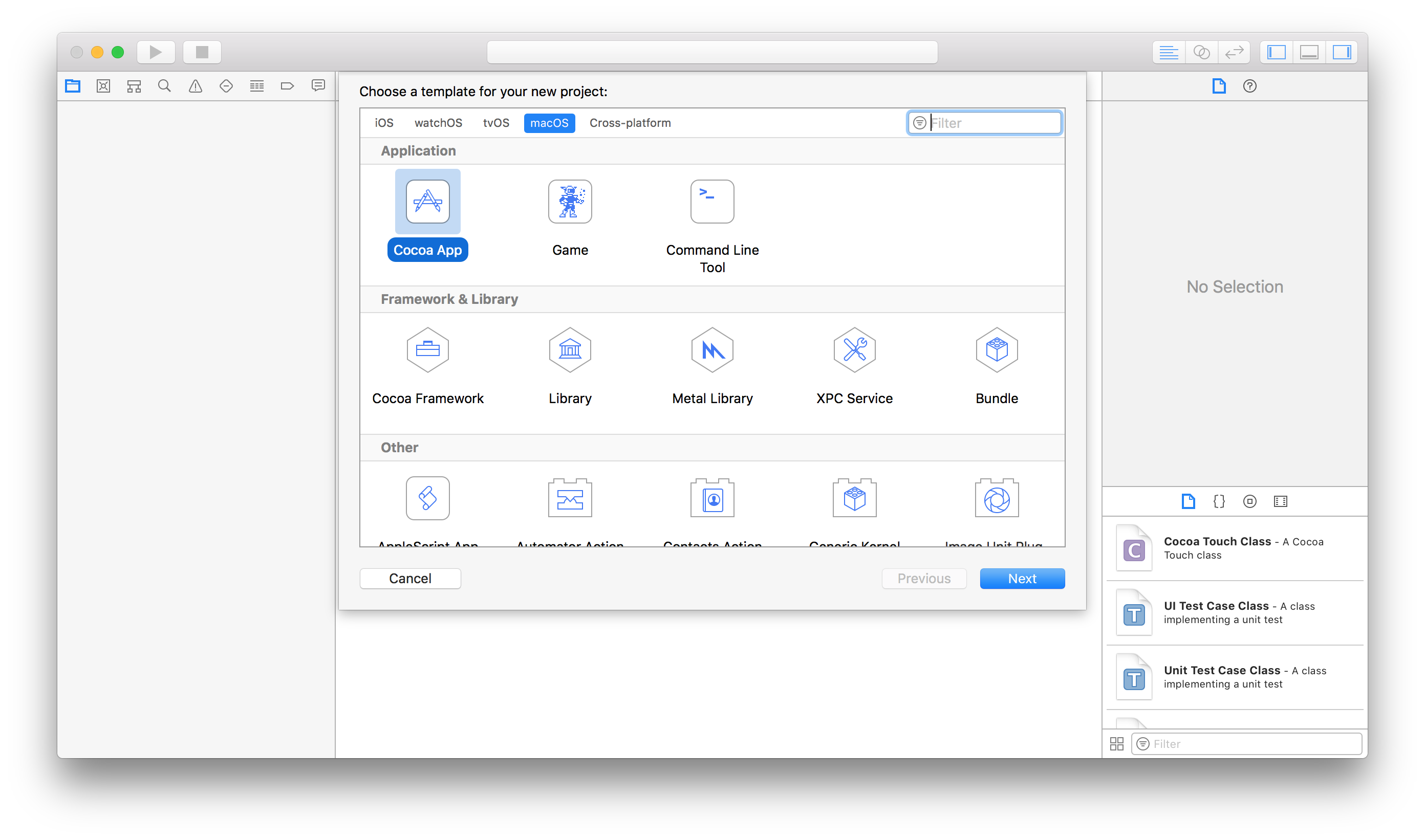

1. 創建工程TestClient，類型為Coaco App。

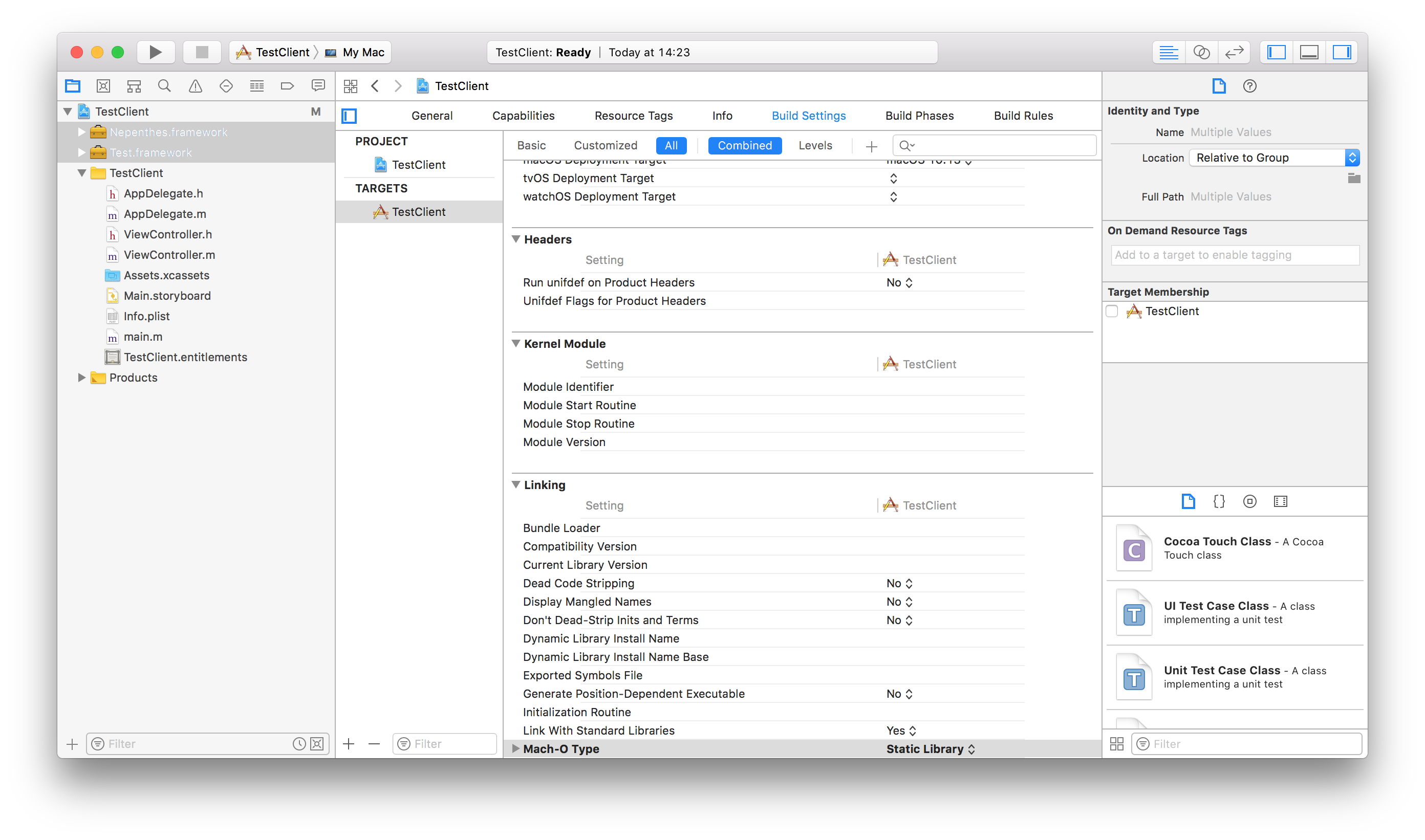

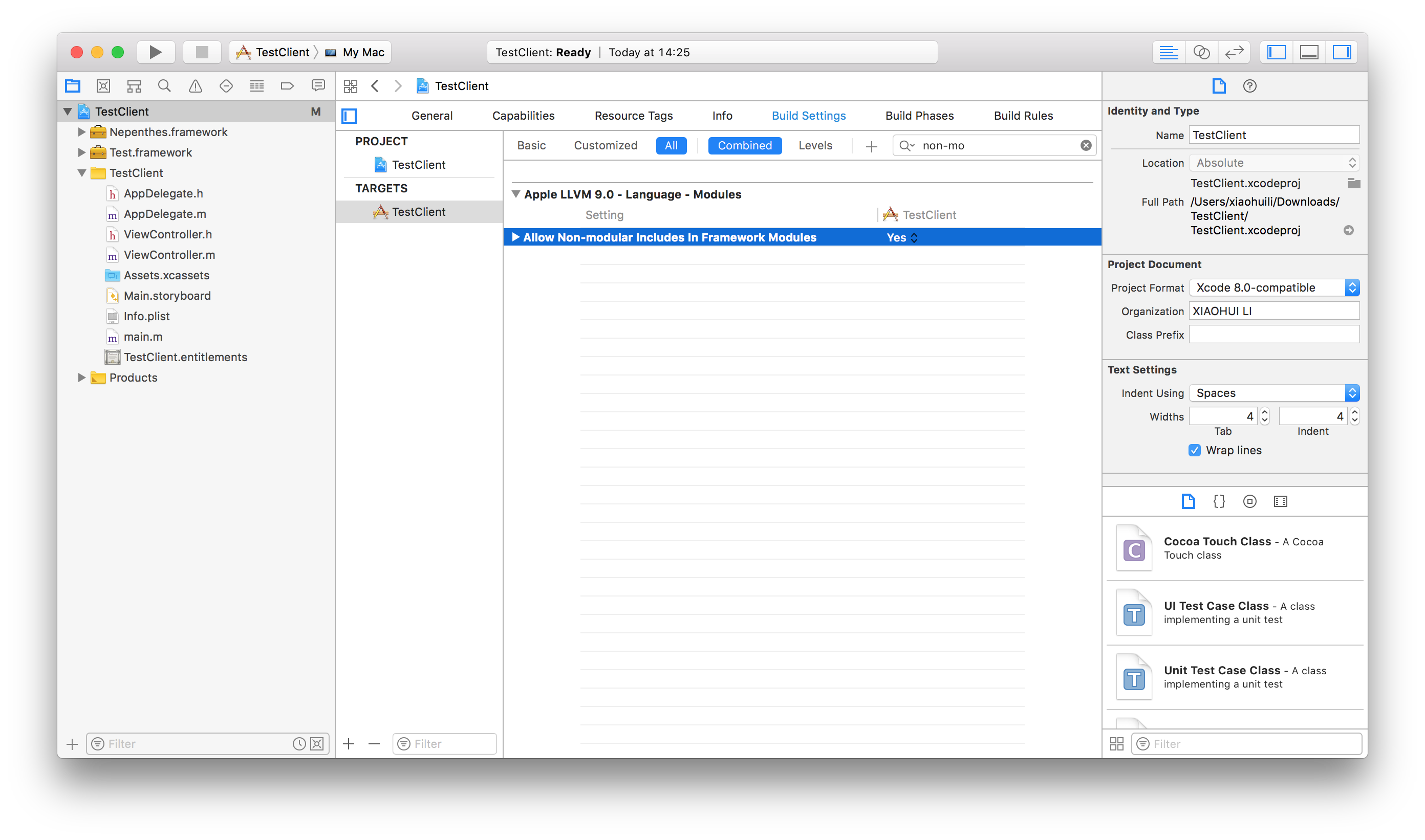

2. 設置Build Setting中的Allow Non-modular Include In Framework Modules的值為YES

3. 將Nepenthes.framework和Test.framework拖到TestClient項目節點下

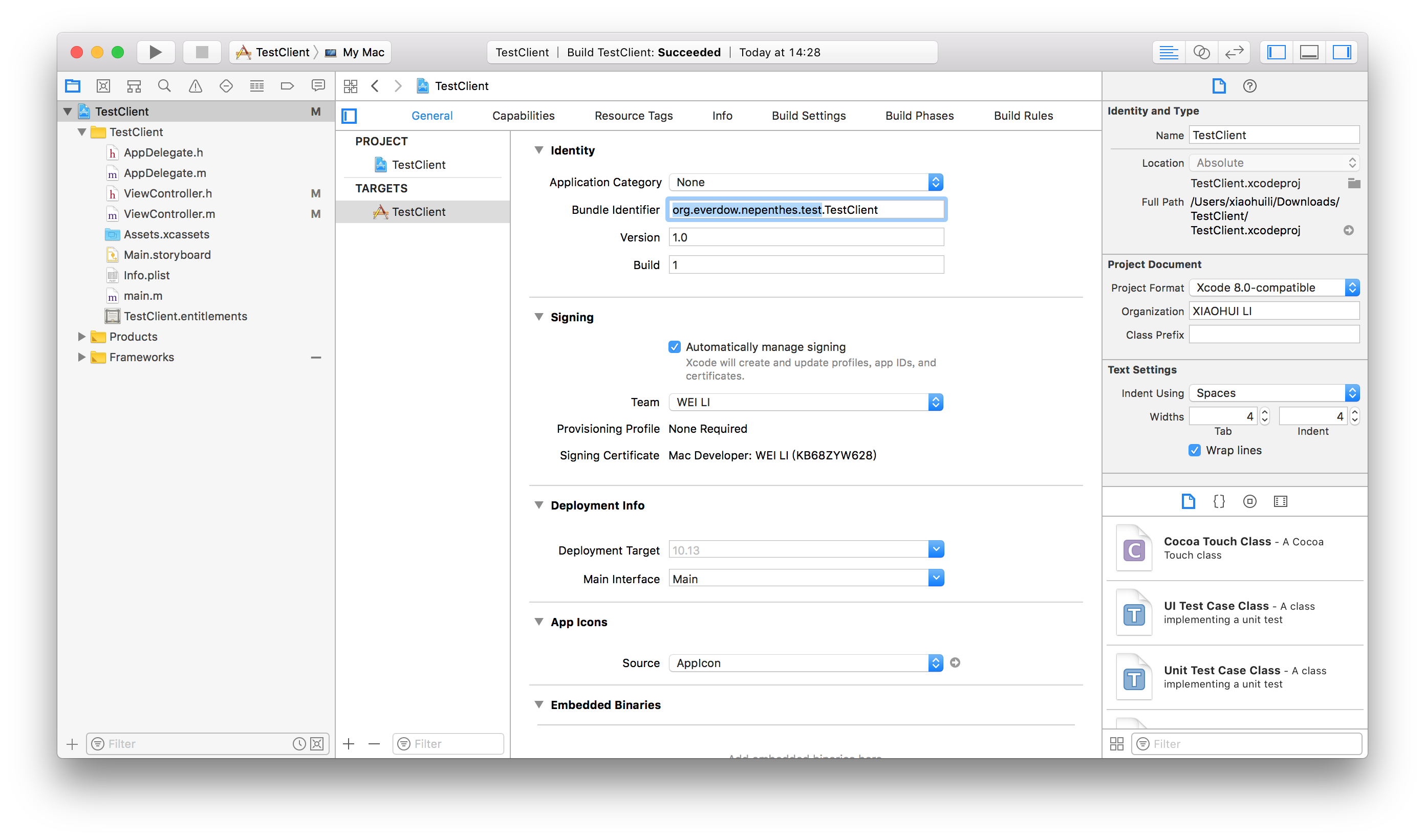

4. 將工程的Bundle Identifier修改為org.everdow.nepenthes.test以正確使用Nepenthes的macOS許可。

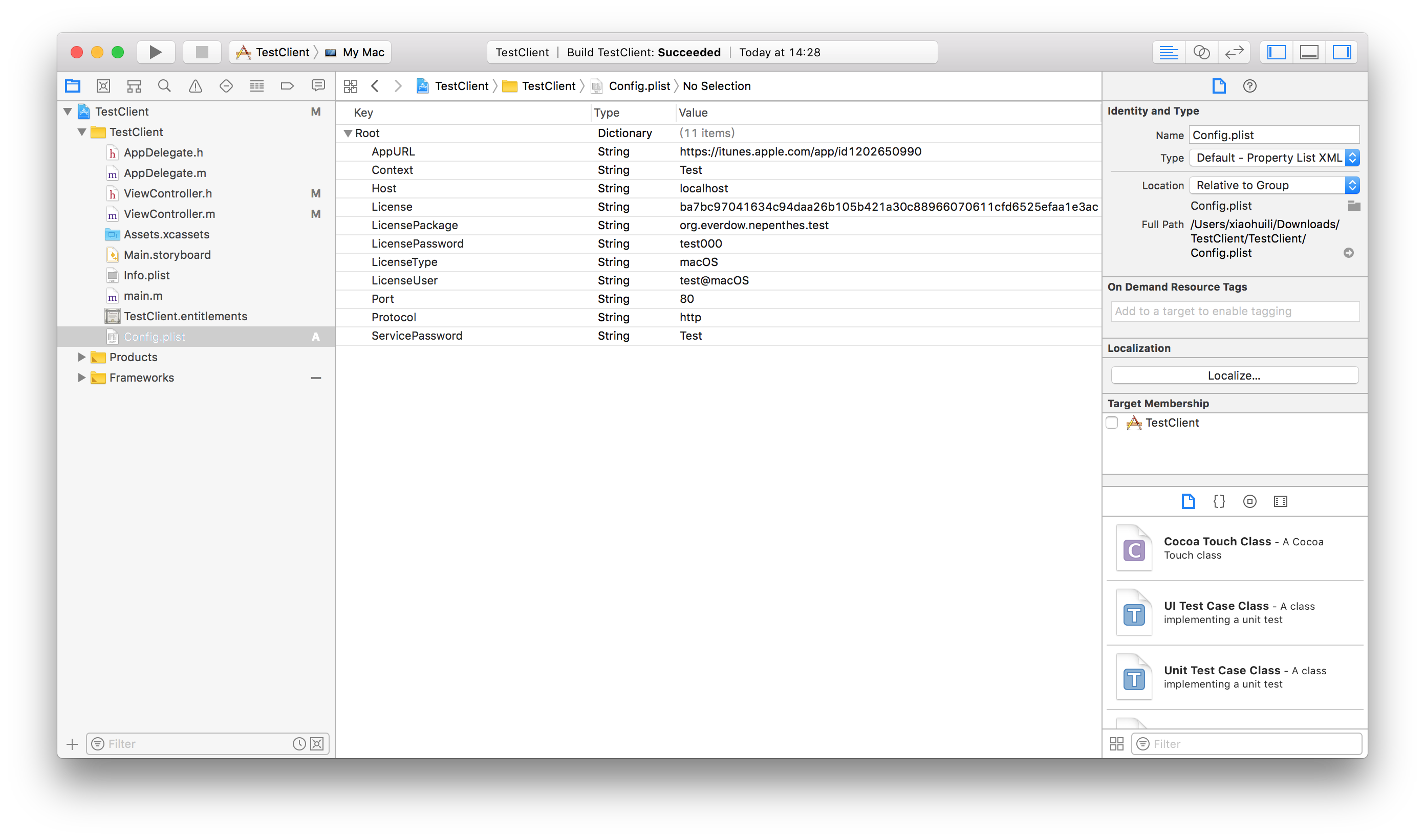

5. 在下截頁面下載Nepenthes的macOS試用許可Config.plist拖放至TestClient工程。

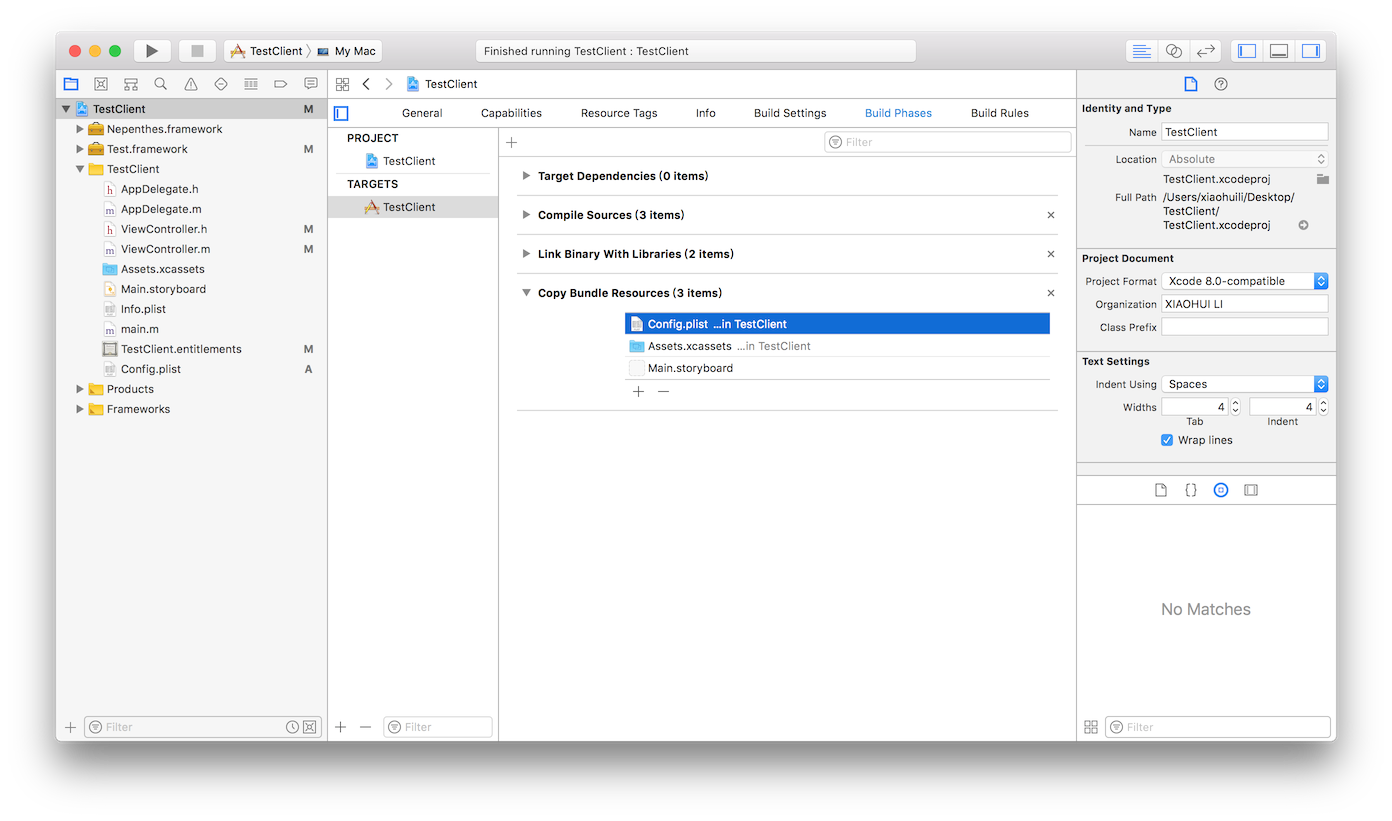

6. 在Build Phases中的Copy Bundle Resource加入Config.plist

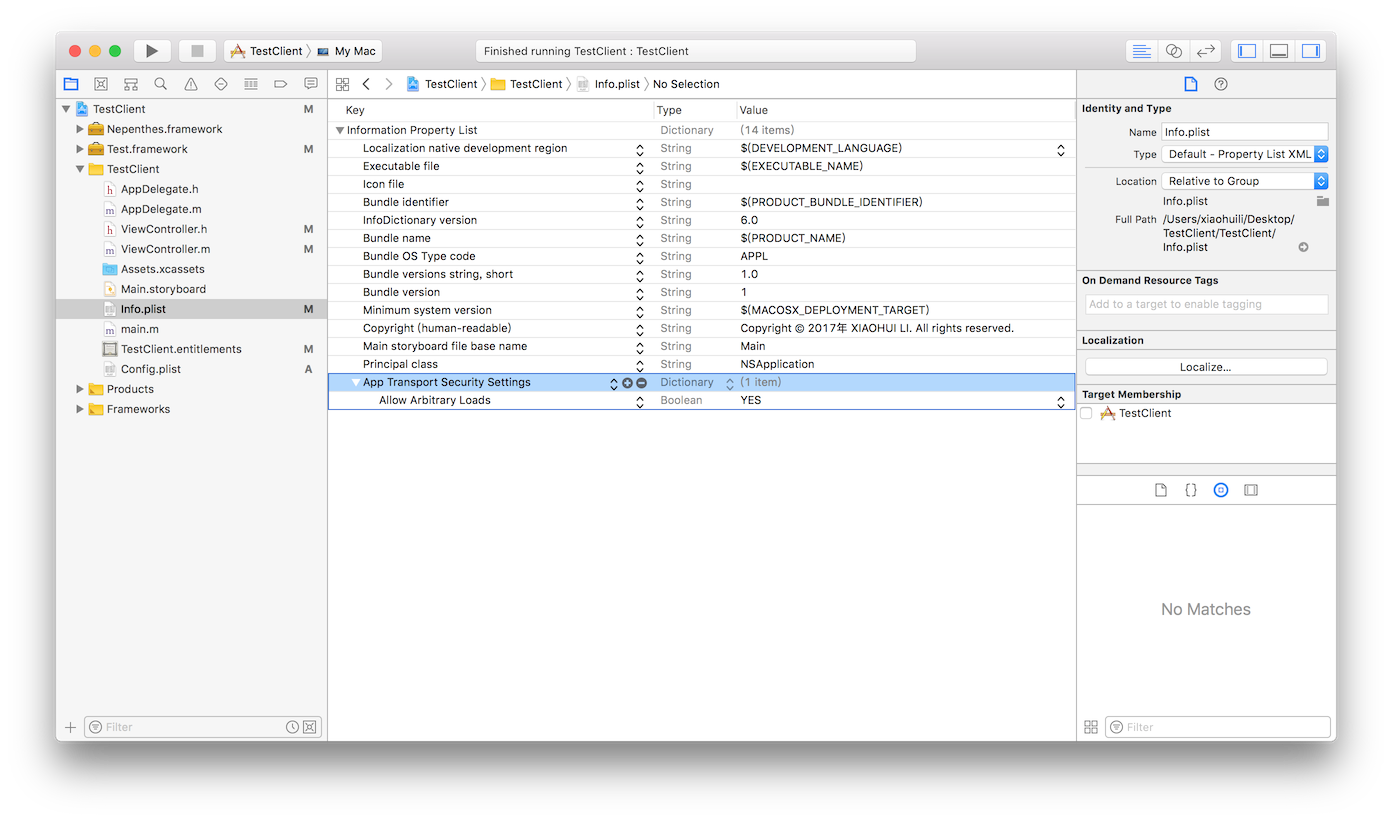

7. 由於Xcode對於安全通訊的要求，請在Info.plist增加下圖中所示的選項。

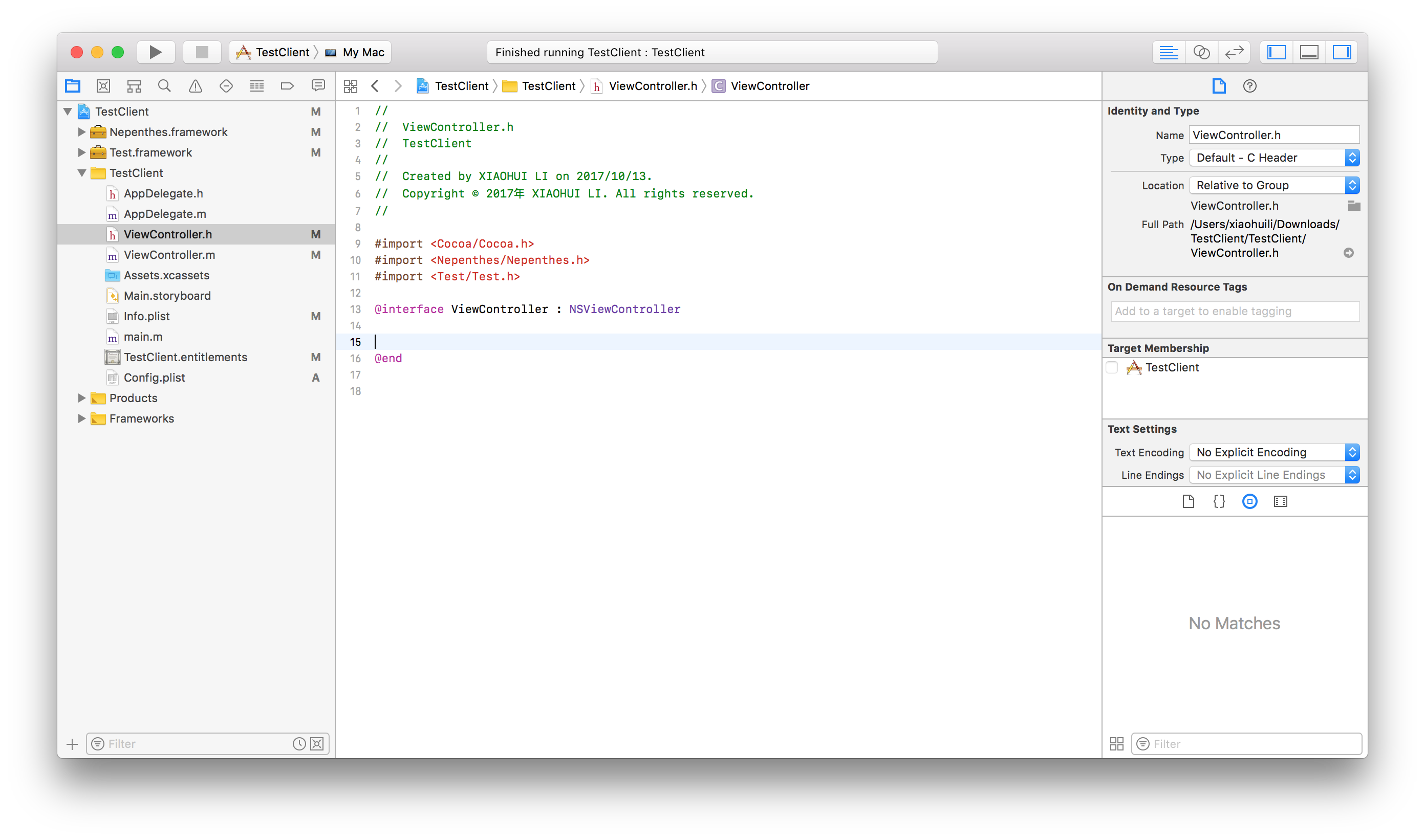

8. 打開ViewController.h，編輯源代碼如下：

9. licenseTest：檢測Nepenthes的macOS許可狀態。

   - (void)licenseTest
   {
       NSInteger licenseCode = [MiscTool hasLicensed];
       NSString *licenseMsg = [MiscTool getLicenseMessage:licenseCode];
       NSLog(@"License:%@",licenseMsg);
   }

10. insertTest：調用BLSyncUserx對象的insert方法將UserxJson對象遠程插入服務器的數據庫中。

    - (void)insertTest
    {
        //Insert Test
        UserxJson *userxJson = [UserxJson new];
        userxJson.FirstName = @"曉輝";
        userxJson.LastName = @"李";
        userxJson.Gender = @"1";
        userxJson.Birthdate = @"1975-11-18";
        userxJson.Salary = @"90000";
        userxJson.RegisteredTime = [MiscTool getServerNow];
        userxJson.Memo = @"李曉輝是Nepenthes的作者。";

        BLSyncUserx *blSyncUserx = [BLSyncUserx new];
        BOOL flag = [blSyncUserx insert:userxJson];
        NSLog(@"Insert:%d",flag);
    }

11. updateTest：調用BLSyncUserx對象的update方法，入參3請以數據庫中的實際ID字段值為準。

    - (void)updateTest
    {
        BLSyncUserx *blSyncUserx = [BLSyncUserx new];
        UserxJson *userxJson = [blSyncUserx getJson:@"3"];
        userxJson.Birthdate = @"1975-10-16";
        BOOL flag = [blSyncUserx update:userxJson];
        NSLog(@"Update:%d",flag);
    }

12. getCountTest：根據SQL的條件語句查詢符合條件的數據庫記錄數量。

    - (void)getCountTest
    {
        BLSyncUserx *blSyncUserx = [BLSyncUserx new];
        NSString *whereClause = @"1=1";
        NSInteger count = [blSyncUserx getCount:whereClause];
        NSLog(@"getCount:%ld",(long)count);
    }

13. selectTest：根據SQL的條件語句查詢數據庫，並返回數組。select還有一個方法實現，即可以分頁顯示的，具體請參閱BLSyncUserx頭文件。

    - (void)selectTest
    {
        BLSyncUserx *blSyncUserx = [BLSyncUserx new];
        NSString *whereClause = @"1=1";
        NSArray *result = [blSyncUserx select:whereClause];
        for(NSDictionary *record in result)
        {
            UserxJson *userxJson = [UserxJson getJson:record];
            NSLog(@"%@",userxJson.FirstName);
        }
    }

14. deleteTest：根據ID刪除指定的數據庫記錄，返回BOOL。delete還有一個實現，即根據SQL條件語句刪除一批數據庫記錄，具體請參閱BLSyncUserx頭文件。

    - (void)deleteTest
    {
        BLSyncUserx *blSyncUserx = [BLSyncUserx new];
        BOOL flag = [blSyncUserx deleteByID:@"3"];
        NSLog(@"Delete:%d",flag);
    }

15. 基於Nepenthes的實現在iOS, macOS和tvOS中是一樣的，不同的是在創建Framework時要選擇不同的平台即可，對於Json對象和BLSync對象的實現方式並無兩樣。
